Product features

1 product profile

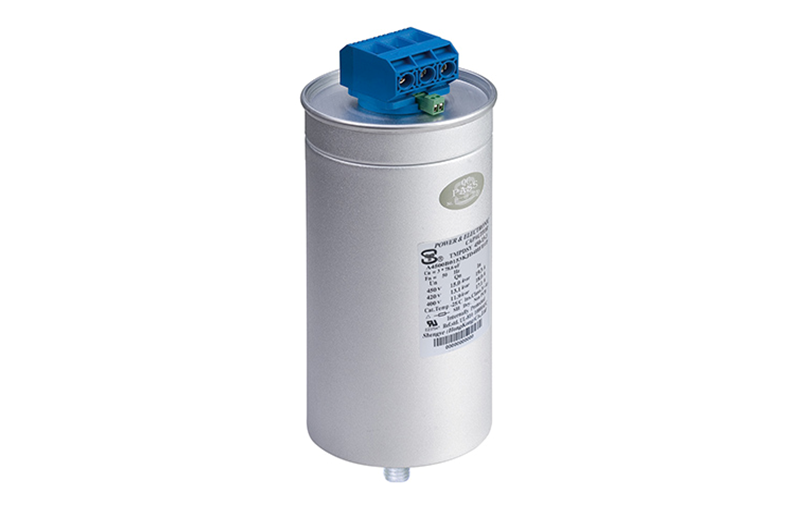

  H series capacitor is a new generation of power capacitor which we developed in our company. It has a number of patents for the world, and has mainly introduced the two protection structure for the use of capacitor in the market..
H series capacitor terminal leads to large current, mainly for large capacity occasions, the maximum can meet the use of 35mm2 wire. The new type of safety explosion-proof structure, the terminal uses the building block structure, the appearance is more beautiful and exquisite, the product interior is inflatable structure. Stable and reliable performance, with a high ability to resist inrush, meet the highest environmental rating requirements.
  When the system due to harmonics, voltage and other factors caused by capacitor over temperature operation, the structure of capacitor will output a control signal, cut off switch, into the over temperature protection, prohibited capacitor into the power grid, until the environment is reduced to acceptable range to enter into the working state, to prolong the service life of the capacitor; when the starting capacitor overvoltage protection device, to cut off the main circuit and output control signal, cut off switch, multiple protection. In by a plurality of parallel capacitors and reactors in series detuning compensation and tuning filter system, the capacitance of the secondary protection circuit used in tandem, avoid due to one or a plurality of capacitor failure caused by the resonance point deviation, which led to a harmonic current amplification, causing the system to crash. Will the system of accidental failure compulsory withdrawal from the working state until the proper maintenance is completed, to prevent the expansion of the accident.


2. Wiring diagram

Type H



3.Technical parameter list

1、Standard of implementation
· National standardGB/T 12747.1-2004 GB/T 12747.2-2004
· International Commission for electrical engineeringIEC60831-1-2002 IEC60831-2-1995
· U.S.A UL810-2008

International and national standardsSpecial design of win industry
2、Environment of use

Temperature-25/CThe lowest-40℃,the highest+70℃
Altitude≤2000m≤5000m
Relative humidity≤95%≤95%



3、Conventional parameters

Rated voltage(Un)400V/415V、440V/450V、480V、525V、690V(Other customizable)1000VThe following arbitrary customization
Rated frequency(fn)50Hz60HzOr other frequency
Rated capacity(Qn)5~30 kvar2.5~100kvar
Capacity accuracy-5%~+10%±3%
Interphase unbalance≤1.08≤1.04
Loss tangenttgδ≤0.001tgδ≤0.001
Extreme pressure2.15Un/5S≥2.5Un/5S
Extreme pressure3600V/2S5000V/2S
Self discharge performanceAfter the power 3min remaining voltage 75V the following1min or shorter



4、Operating parameters

Overvoltage1.1Un1.35Un
Over current1.3In1.6~3In



5、Reliability, explosion-proof

ReliabilityAt the rated voltage and nominal temperature of the 60000/5000 hours, the product failure is less than 6%/0.5% (1ppm hours), reaching the American electrical industry association standard EIA-456-A requirements.
Explosion-proof modeTensile explosion-proof + two explosion-proof explosion-proof

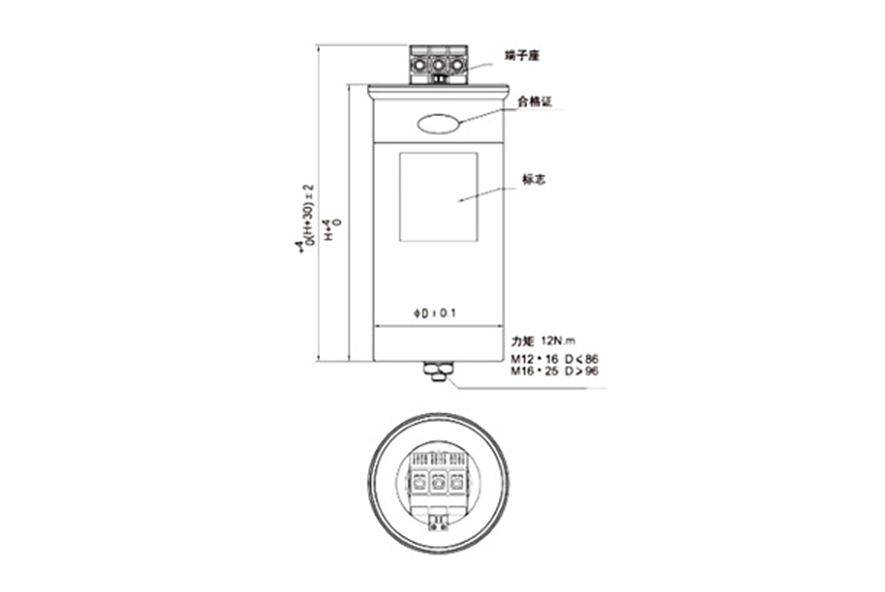

4.Schematic diagram of pressure explosion proof device

Type H



5.Conventional specifications selection table (other voltage levels can be customized)

Scifications

Vltage
(V)

Cpacity
(kVAr)

Cpacitance
(uF)

Crrent
(A)

Pduct size
(mm)

Pking size
(mm)

Pckaging
(a/box)

TMPDSY400-5-3400599.57.2Φ76×175-M12*16415*175*3407
TMPDSY400-7.5-34007.5149.310.8Φ76×240-M12*16415*175*34 7
TMPDSY400-10-340010199.014.4Φ76×240-M12*16415*175*3407
TMPDSY400-12-340012238.917.3Φ86×240-M12*16415*175*3405
TMPDSY400-15-340015298.621.7Φ96×240-M16*25415*175*3404
TMPDSY400-20-340020398.128.9Φ106×240-M16*25415*175*3403
TMPDSY400-25-340025497.636.1Φ106×285-M16*25415*175*3903
TMPDSY400-30-340030597.143.3Φ116×285-M16*25415*175*3903








TMPDSY415-5-3415592.57.0Φ76×175-M12*16415*175*340 7
TMPDSY415-7.5-34157.5138.710.4Φ76×240-M12*16415*175*340 7
TMPDSY415-10-341510184.913.9Φ76×240-M12*16415*175*340 7
TMPDSY415-12-341512221.916.7Φ86×240-M12*16415*175*340 5
TMPDSY415-15-341515277.420.9Φ96×240-M16*25415*175*340 4
TMPDSY415-20-341520369.827.8Φ106×240-M16*25415*175*340 3
TMPDSY415-25-341525462.334.8Φ116×240-M16*25415*175*340 3
TMPDSY415-30-341530554.741.7Φ116×285-M16*25415*175*390 3








TMPDSY450-5-3450578.66.4Φ76×175-M12*16415*175*3407
TMPDSY450-7.5-34507.5118.09.6Φ76×175-M12*16415*175*3407
TMPDSY450-10-345010157.312.8Φ76×240-M12*16415*175*3407
TMPDSY450-12-345012188.715.4Φ76×240-M12*16415*175*3407
TMPDSY450-15-345015235.919.2Φ86×240-M12*16415*175*3405
TMPDSY450-20-345020314.525.7Φ96×240-M16*25415*175*3404
TMPDSY450-25-345025393.232.1Φ106×240-M16*25415*175*3403
TMPDSY450-30-345030471.838.5Φ116×240-M16*25415*175*3403








TMPDSY480-5-3480569.16.0Φ76×175-M12*16415*175*340 7
TMPDSY480-7.5-34807.5103.79.0Φ76×175-M12*16415*175*340 7
TMPDSY480-10-348010138.212.0Φ76×240-M12*16415*175*340 7
TMPDSY480-12-348012165.914.4Φ86×240-M12*16415*175*340 5
TMPDSY480-15-348015207.318.0Φ86×240-M12*16415*175*340 5
TMPDSY480-20-348020276.524.1Φ106×240-M16*25415*175*340 3
TMPDSY480-25-348025345.630.1Φ116×240-M16*25415*175*340 3
TMPDSY480-30-348030414.736.1Φ116×285-M16*25415*175*390 3








TMPDSY525-5-3525557.85.5Φ76×175-M12*16415*175*340 7
TMPDSY525-7.5-35257.586.78.2Φ76×240-M12*16415*175*340 7
TMPDSY525-10-352510115.511.0Φ76×240-M12*16415*175*340 7
TMPDSY525-12-352512138.713.2Φ86×240-M12*16415*175*340 5
TMPDSY525-15-352515173.316.5Φ96×240-M16*25415*175*340 4
TMPDSY525-20-352520231.122.0Φ106×240-M16*25415*175*340 3
TMPDSY525-25-352525288.927.5Φ116×240-M16*25415*175*340 3
TMPDSY525-30-352530346.633.0Φ116×285-M16*25415*175*390 3








TMPDSY690-5-36905100.34.2Φ76×175-M12*16415*175*340 7
TMPDSY690-7.5-36907.5150.56.3Φ76×240-M12*16415*175*340 7
TMPDSY690-10-369010200.78.4Φ76×240-M12*16415*175*340 7
TMPDSY690-12-369012240.810.0Φ86×240-M12*16415*175*340 5
TMPDSY690-15-369015301.012.6Φ96×240-M16*25415*175*340 4
TMPDSY690-20-369020401.416.7Φ106×240-M16*25415*175*340 3
TMPDSY690-25-369025501.720.9Φ106×285-M16*25415*175*390 3
TMPDSY690-30-369030602.025.1Φ116×285-M16*25415*175*390 3
