1、Product use
Capacitor in the reactive power compensation circuit are often subject to harmonic current, inrush current and overvoltage impact, resulting in the capacitor is easy to damage. Therefore, series reactor with a certain proportion, to suppress and absorb part of harmonic, can significantly improve the reliability and stability of the power supply system, in many cases, such as harmonic content, you must matching capacitors and reactors in series.
The main function of series reactors is:
1 suppress the harmonic amplification, and filter out a certain proportion of the harmonic.
2 with the accurate collocation, the passive filter can be formed with the capacitor series and can filter out the harmonic of a certain time.
3 to inhibit the flow of the input capacitor, protect capacitor and other components.
★Special tips:
1 the loop of series reactors can still play a reactive power compensation, but the capacity of the compensation is less than the series reactor, and the capacity of the series reactor is reduced..
2 series reactor will increase the voltage on the capacitor. The capacity of the series reactors is determined by the increase of the number of the reactors.. This must be taken into account when selecting a capacitor model.
2、Model description
Reactor type description

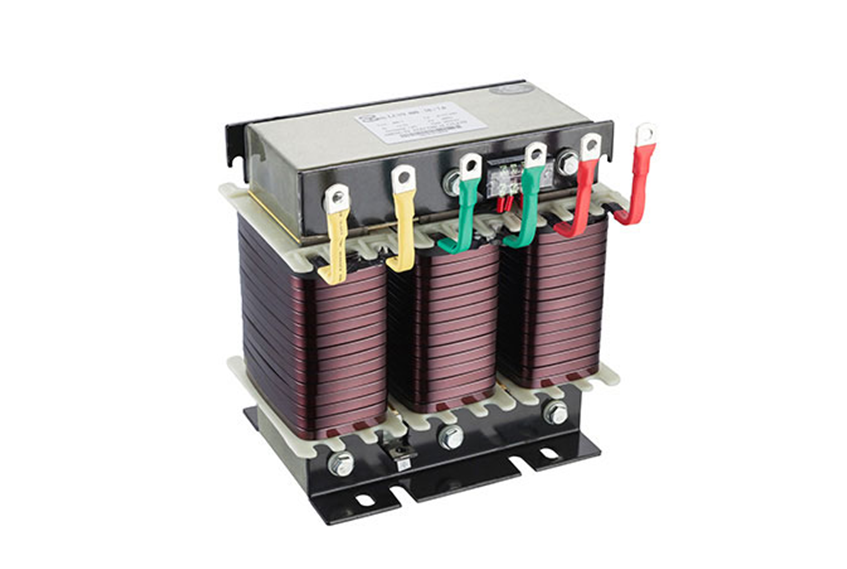

![LCSY series]( "LCSY series")
3、Product features
●Pure dry structure, resin casting
●High quality silicon steel sheet, copper wire manufacture
●Vacuum drying impregnation process
●The design margin is big, the loss is small, Wen Shengdi
●Overload, can be 1.35 times the rated current of long-term work
●Low noise
4、Technical parameters and environment
Rated voltage: 250, 440V, 480V, 525V (customizable) | Reactance rate: 6%, 7%, 13.5%, 14% (customizable) |
Phase number: single phase or three-phase | Inductance: Ln + 3%, + 5%
|
Rated frequency: 50Hz (for 60Hz to be specified) | Stable over current: 1.35In |
Voltage test: winding to ground 3KV/1min | Temperature rise: coil temperature rise≤80K |
Loss:≤15W/kVAr | Operating environment: -40° to 50°, relative humidity no more than 90% |
Temperature protection:105℃ or 130℃ normally closed | Insulation class: F or H |
Noise：≤50dB | Protection grade: IP00, indoor use |
Linearity：1.8In | Installation spacing: 30mm |
Quotation / order tips:
Ordering party shall provide the measured harmonic current spectrum, if there is no measured data, according to inform our engineer electrical equipment, our will evaluate and for the user design reasonable capacitance and reactance specifications.
