Product name:

TMLSY series

listing date: 2017-12-18
Products / Related products
2017 - 12 - 04
◆Execution standard:《IEC:60252-1—2013》《GB3667.1—2016》;◆Product features: Small size, long service life, stable capacitance, internal use of safety mesh membrane explosion-proof structure, the use of s...
2017 - 11 - 21
Highlight FeaturesHigh Irms RatingHigh Ipeak RatingLow self-inductanceHigh reliability and life expectancyNon-polar技术参数Paramaters产品型号SpecificationDCLJCSY 900-700额定电容Rated Capacitance700uF(25℃)额定电压Rate...
2017 - 10 - 13
Execution standard: Meet the requirement of standard《EC I: 60252-1-60252》《UL810-2008》《GB3667.1-2005》; Product features:low in dissipation,small inherent temperature rise,long life ...
Product features

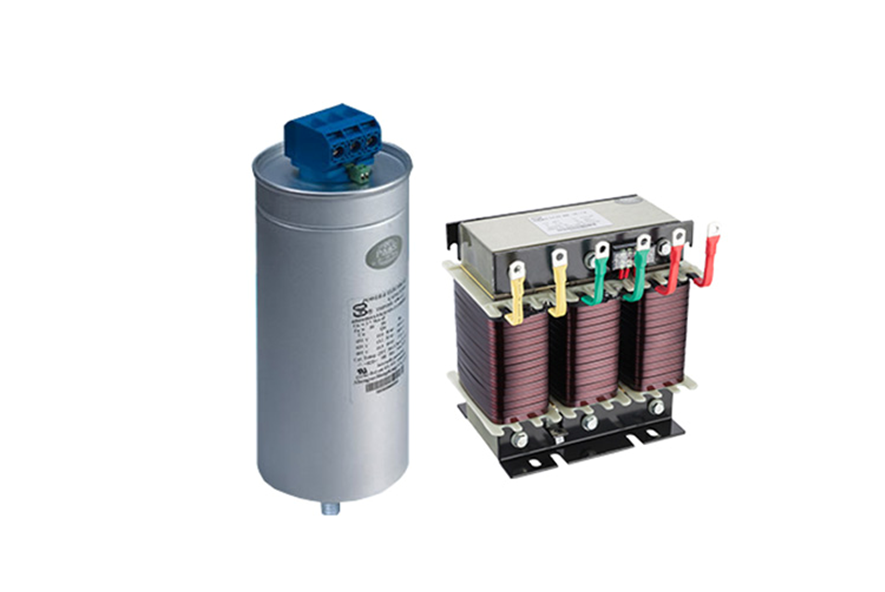

TMLSY series

1.Product introduction

The filter component is the investment and tangent element of the relative independent compensation and the loss function of the capacitor according to the load and the combination of the reactor demand configuration..


2.Characteristic

1 matching is more reasonable and more accuracy, the higher technical content is conducive to the harmonic absorption;
2 is a service to enhance: the same manufacturer, the same brand, easy after-sales service.


3.Model description

TMLSY series

Note: other voltage levels, specifications can be customized according to user requirements.


4.Application sample

Such as the voltage 400V of a certain engineering system, the compensation capacity of 275kVAr is required, and the load is mainly based on 5 and 7 harmonics.. Reference selection is as follows:
Compensation component:

TMLSY 480-33.5/7.0*1

TMLSY 480-67.0/7.0*5

Controller:

SY-JKWBX-12A*1



5.Selection

Component type

400V fundamental output capacity kvar

Configuration capacitor

Matching reactor

Remarks

Model

Size (mm)

Number

Model

Size (mm)

Number

TMLSY 480-20.1/7.0

15.0

TMPDSY 480-20.3-3

Φ106*240

1

LCSY 480-20.1/7.0

240*180*190

1

Anti 5 and 7 harmonic reactive power compensation components (with 7% mismatch reactor)

TMLSY 480-30.0/7.0

22.4

TMPDSY 480-30.0-3

Φ116*285

1

LCSY 480-30.0/7.0

240*190*200

1

TMLSY 480-33.5/7.0

25.0

TMPDSY 480-33.8-3

Φ116*285

1

LCSY 480-33.5/7.0

240*195*205

1

TMLSY 480-40.2/7.0

30.0

TMPDSY 480-20.3-3

Φ106*240

2

LCSY 480-40.2/7.0

240*195*210

1

TMLSY 480-50.0/7.0

37.4

TMPDSY 480-25.0-3

Φ116*240

2

LCSY 480-50.0/7.0

240*220*220

1

TMLSY 480-60.0/7.0

44.8

TMPDSY 480-30.0-3

Φ116*285

2

LCSY 480-60.0/7.0

270*230*240

1

TMLSY 480-67.0/7.0

50.0

TMPDSY 480-33.8-3

Φ116*285

2

LCSY 480-67.0/7.0

300*230*245

1

TMLSY 480-80.4/7.0

60.0

TMPDSY 480-27.1-3

Φ106*285

3

LCSY 480-80.4/7.0

300*240*245

1

TMLSY 480-100/7.0

75.0

TMPDSY 480-33.5-3

Φ116*285

3

LCSY 480-100/7.0

300*260*265

1

TMLSY 525-22.4/13.5

15.0

TMPDSY 525-22.4-3

Φ106*240

1

LCSY 525-22.4/13.5

300*210*230

1

Anti 3 harmonic reactive power compensation components (with 13.5% mismatch reactor)

TMLSY 525-30.0/13.5

20.1

TMPDSY 525-30.0-3

Φ116*285

1

LCSY 525-30.0/13.5

300*230*245

1

TMLSY 525-40.0/13.5

26.8

TMPDSY 525-20.0-3

Φ106*240

2

LCSY 525-40.0/13.5

300*240*265

1

TMLSY 525-44.8/13.5

30.0

TMPDSY 525-22.4-3

Φ106*240

2

LCSY 525-44.8/13.5

300*240*265

1

TMLSY 525-50.0/13.5

33.6

TMPDSY 525-25.0-3

Φ116*240

2

LCSY 525-50.0/13.5

340*265*285

1

TMLSY 525-60.0/13.5

40.3

TMPDSY 525-30.0-3

Φ116*285

2

LCSY 525-60.0/13.5

360*260*300

1

TMLSY 525-67.1/13.5

45.0

TMPDSY 525-33.5-3

Φ116*285

2

LCSY 525-67.1/13.5

360*260*310

1

TMLSY 525-74.5/13.5

50.0

TMPDSY 525-37.3-3

Φ136*240

2

LCSY 525-74.5/13.5

360*260*310

1

Note: other specifications can be customized.
