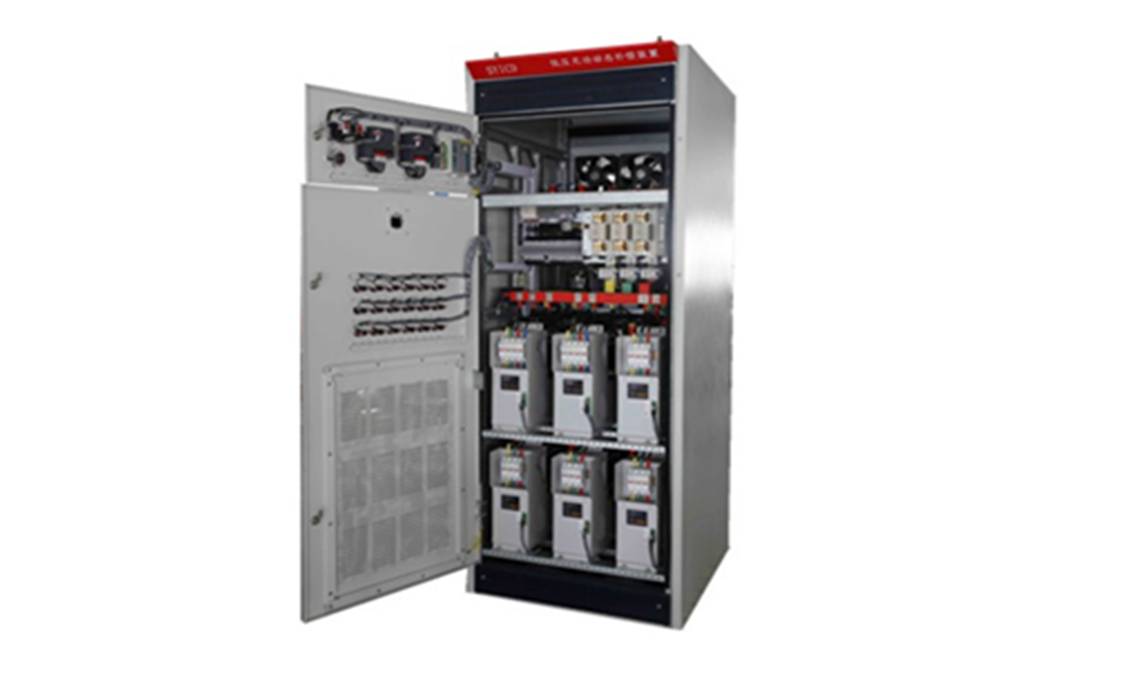

SYICD- T (M) SC product overview
SYICD-T (M) SC low voltage reactive power compensation device (referred to as device) is a new type of reactive power compensation product developed by our company. It innovates and improves on the basis of summarizing the characteristics of LV reactive power compensation products both at home and abroad, Novel, modular components, quick installation, commissioning simple, easy maintenance and overhaul. Configure our own self-developed compensation controller and various filtering modules or components, enabling intelligent control. Products comply with GB7251.1-2013, GB7251.12-2013, GB / T15576-2008 and other national standards, and passed the 3C certification, factories, petrochemicals, coal, metallurgy, airports, shipyards, railways, hospitals, residential areas and other low-voltage Distribution system as a reactive power compensation, harmonic suppression and absorption of the ideal product.
Technical Parameters
1. Rated voltage: 400V
2. Rated capacity: 67 ~ 574kvar
3. Rated frequency: 50Hz / 60Hz
4 power factor: 0.9 ~ 0.95 above
5. Series reactor impedance ratio: 6%, 7%, 13.5%, 14%
6. Cooling: natural air-cooled to enhance forced air cooling
7. System Protection: System over-voltage, over-temperature protection, branch overload protection
8. Protection class: IP30
9. cabinet type: GGD, GCK, MNS and so on
Features
1. The controller uses instantaneous reactive power algorithm, fast response, you can manually / automatically control.
2. Automatic control with a cycle of switching, coding switching, switching and other switching sequence mode.
3. Real-time monitoring system voltage, current, power factor, compensation status and other parameters.
4.TSC dynamic device can track load changes in real time, the dynamic cycle (15 ~ 40ms), no need to discharge to re-vote. MSC static device switching delay 0 ~ 120s adjustable, the special requirements of the device switching cycle as fast as 1S.
5. Has a perfect over-voltage, under-voltage, over-current, short circuit, phase loss, maloperation and other protective measures.
6. To avoid the capacitor resonance, shunt 20% to 30% of the characteristics of subharmonic current.
7. Beautiful appearance, mature technology, stable performance, wide range of applications.
8. branch compensation TSC dynamic device using SCR switching, MSC static device using contactor switching.
9. Branch compensation module can be horizontal or vertical module, has been the use of components in the form of wins, the module according to user needs using intelligent or non-intelligent.
