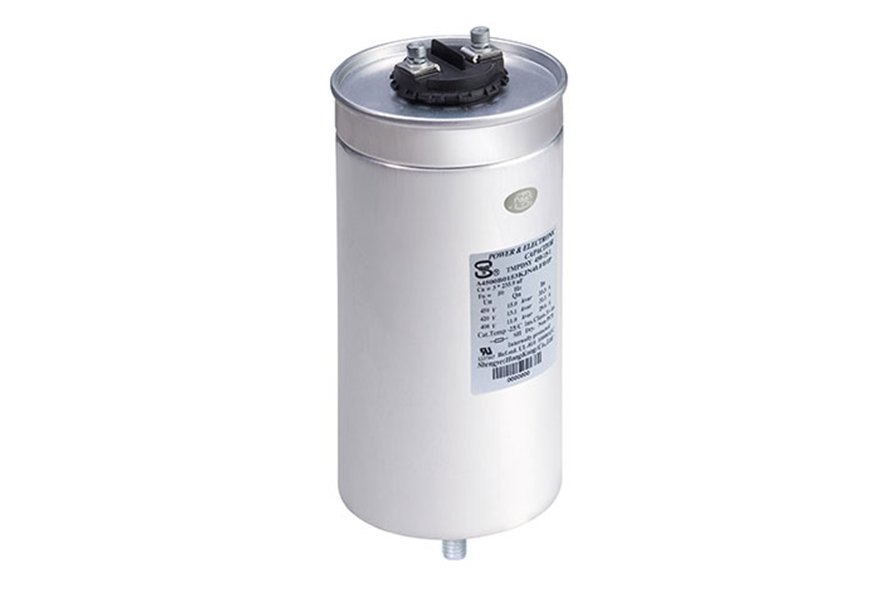

Type L

listing date: 2017-12-18
Products / Related products
Product features

1.Product profile

L type terminal leads to structure, for single-phase products, easy to install.z



2.Technical parameter list

1、Standard of implementation

·National standard 12747.1-2004 GB/T 12747.2-2004 GB/T

· International Electrical Commission Standard IEC60831-2-1995 IEC60831-1-2002

· American UL810-2008


International and national standards

Special design of win industry

2、Environment of use



Temperature

-25/C

The lowest-40℃,the highest+70℃

Altitude

≤2000m

≤5000m

Relative humidity

≤95%

≤95%




3、Conventional parameters



Rated voltage (Un)

250V、400V、480V、525V

1000Vfollowing arbitrary customization

Rated frequency (FN)

50Hz

60Hzor other frequency

Rated capacity (Qn)

5~20 kvar

2.5~100kvar

Capacity accuracy

-5%~+10%

±3%

Interphase unbalance

≤1.08

≤1.04

Loss tangent

tgδ≤0.001

tgδ≤0.001

Extreme pressure

2.15Un/5S

≥2.5Un/5S

Extreme pressure

3600V/2S

5000V/2S

Self discharge performance

After the power 3min remaining voltage 75V the following

1min or shorter




4、Operating parameters



Overvoltage

1.1Un

1.35Un

Over current

1.3In

1.6~3In




5、Reliability, explosion-proof



Reliability

At the rated voltage and nominal temperature of the 60000/5000 hours, the product failure is less than 6%/0.5% (1ppm hours), reaching the American electrical industry association standard EIA-456-A requirements.

Explosion-proof mode

Tension explosion proof (schematic, see the total type)


3.Conventional specifications selection table (other voltage levels can be customized)

Secification

Voltage
(V)

Capacity
(kVAr)

Capacity
(uF)

Electric current
(A)

Product size
(mm)

Package size
(mm)

Packing
(pieces / box)

TMPDSY250-5-1

250

5

254.8

20.0

Φ76×175-M12*16

415*175*340

7

TMPDSY250-7.5-1

250

7.5

382.2

30.0

Φ76×240-M12*16

415*175*340

7

TMPDSY250-10-1

250

10

509.6

40.0

Φ86×240-M12*16

415*175*340

5

TMPDSY250-15-1

250

15

764.3

60.0

Φ106×240-M16*25

415*175*340

3









TMPDSY450-15-1

450

15

235.9

33.3

Φ86×240-M12*16

415*175*340

5

TMPDSY450-20-1

450

20

314.5

44.4

Φ96×240-M16*25

415*175*340

4









TMPDSY480-15-1

480

15

207.3

31.3

Φ86×240-M12*16

415*175*340

5

TMPDSY480-20-1

480

20

276.5

41.7

Φ106×240-M16*25

415*175*340

3
