Main features
1.can withstand high pulse current;
2.can withstand high RMS current;
3.High reliability, long service life.
Application field
1.Frequency converter;
2.Converter;
3.Uninterrupted power supply.
4.Industrial drives.
Technical parameters
Capacity range | 5μF ～ 100μF（25℃） |
| The rated voltage | 800VDC～ 1000VDC |
Capacity of the deviation | ±10% (standard), ±5% (upon request) |
The dielectric | Metallized polypropylene |
Dielectric loss | tanδ≤0.0006（1000Hz，25℃） |
Time constant | C≤0.33μF,RC≥15000S; C＞0.33μF,RC≥5000S |
Operating temperature | -40℃～+85℃ |
Core temperature | ≤+85℃ |
Storage temperature | -40℃～+85℃ |
The altitude | ≤2000m |
Life expectancy | 100,000 hours at Un and Th≤70℃ |
Electrode pressure | 1.5Un / 10s at 25℃ |
structure | Dry type, with resin sealing, Non-inductive, Antiflaming |

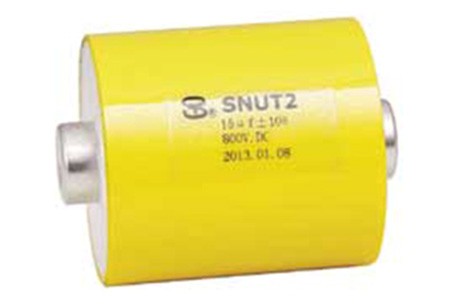

Lead | Cylindrical capacitor body with axial screw and thread connections |
The reference standard | IEC61071-2007, UL94V-0 |
