Main features
1.Can withstand high pulse current;
2.Can withstand high RMS current;
3.High reliability, long service life.

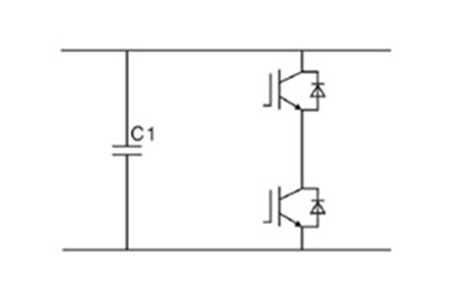

Application field
1.Frequency converter;
2.Converter;
3.Uninterrupted power supply;
4.Industrial drive.
Performance parameters
Capacity range | 0.1μF ～ 6.8μF（25℃） |
| The rated voltage | 700VDC～ 3000VDC |
Capacity of the deviation | ±10% (standard), ±5% (upon request) |
The dielectric | Metallized polypropylene |
| Dielectric loss | tanδ≤0.0006（1000Hz，25℃） |
| Time constant | C≤0.33μF,RC≥15000S; C＞0.33μF,RC≥5000S |
| Operating temperature | -40℃～+85℃ |
| Core temperature | ≤+85℃ |
| Storage temperature | -40℃～+85℃ |
The altitude | ≤2000m |
Life expectancy | 100,000 hours at Un and θh≤70℃ |
| Electrode pressure | 1.5Un / 10s at 25℃ |
| structure | Dry type, with resin sealing, Non-inductive, Antiflaming |
| Lead | Cylindrical capacitor body with axial screw and thread connections |
The reference standard | IEC61071-2007, UL94V-0 |
