Product features

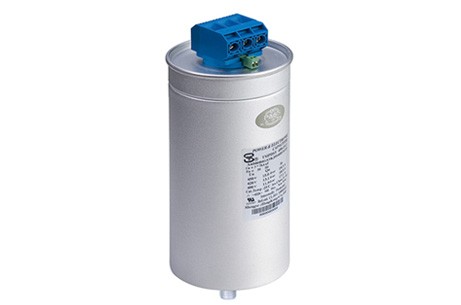

Type H

1 product profile

  H series capacitor is a new generation of power capacitor which we developed in our company. It has a number of patents for the world, and has mainly introduced the two protection structure for the use of capacitor in the market..
H series capacitor terminal leads to large current, mainly for large capacity occasions, the maximum can meet the use of 35mm2 wire. The new type of safety explosion-proof structure, the terminal uses the building block structure, the appearance is more beautiful and exquisite, the product interior is inflatable structure. Stable and reliable performance, with a high ability to resist inrush, meet the highest environmental rating requirements.
  When the system due to harmonics, voltage and other factors caused by capacitor over temperature operation, the structure of capacitor will output a control signal, cut off switch, into the over temperature protection, prohibited capacitor into the power grid, until the environment is reduced to acceptable range to enter into the working state, to prolong the service life of the capacitor; when the starting capacitor overvoltage protection device, to cut off the main circuit and output control signal, cut off switch, multiple protection. In by a plurality of parallel capacitors and reactors in series detuning compensation and tuning filter system, the capacitance of the secondary protection circuit used in tandem, avoid due to one or a plurality of capacitor failure caused by the resonance point deviation, which led to a harmonic current amplification, causing the system to crash. Will the system of accidental failure compulsory withdrawal from the working state until the proper maintenance is completed, to prevent the expansion of the accident.


2. Wiring diagram

Type H



3.Technical parameter list

1、Standard of implementation

· National standardGB/T 12747.1-2004 GB/T 12747.2-2004

· International Commission for electrical engineeringIEC60831-1-2002 IEC60831-2-1995

· U.S.A UL810-2008


International and national standards

Special design of win industry

2、Environment of use



Temperature

-25/C

The lowest-40℃,the highest+70℃

Altitude

≤2000m

≤5000m

Relative humidity

≤95%

≤95%




3、Conventional parameters



Rated voltage(Un)

400V/415V、440V/450V、480V、525V、690V(Other customizable)

1000VThe following arbitrary customization

Rated frequency(fn)

50Hz

60HzOr other frequency

Rated capacity(Qn)

5~30 kvar

2.5~100kvar

Capacity accuracy

-5%~+10%

±3%

Interphase unbalance

≤1.08

≤1.04

Loss tangent

tgδ≤0.001

tgδ≤0.001

Extreme pressure

2.15Un/5S

≥2.5Un/5S

Extreme pressure

3600V/2S

5000V/2S

Self discharge performance

After the power 3min remaining voltage 75V the following

1min or shorter




4、Operating parameters



Overvoltage

1.1Un

1.35Un

Over current

1.3In

1.6~3In




5、Reliability, explosion-proof



Reliability

At the rated voltage and nominal temperature of the 60000/5000 hours, the product failure is less than 6%/0.5% (1ppm hours), reaching the American electrical industry association standard EIA-456-A requirements.

Explosion-proof mode

Tensile explosion-proof + two explosion-proof explosion-proof

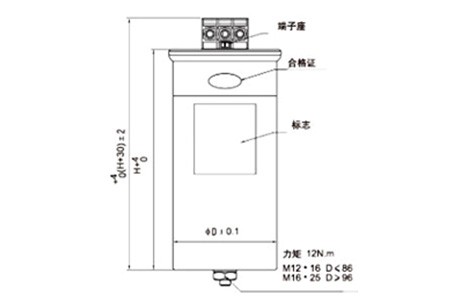

4.Schematic diagram of pressure explosion proof device

Type H



5.Conventional specifications selection table (other voltage levels can be customized)

Scifications

Vltage
(V)

Cpacity
(kVAr)

Cpacitance
(uF)

Crrent
(A)

Pduct size
(mm)

Pking size
(mm)

Pckaging
(a/box)

TMPDSY400-5-3

400

5

99.5

7.2

Φ76×175-M12*16

415*175*340

7

TMPDSY400-7.5-3

400

7.5

149.3

10.8

Φ76×240-M12*16

415*175*34

7

TMPDSY400-10-3

400

10

199.0

14.4

Φ76×240-M12*16

415*175*340

7

TMPDSY400-12-3

400

12

238.9

17.3

Φ86×240-M12*16

415*175*340

5

TMPDSY400-15-3

400

15

298.6

21.7

Φ96×240-M16*25

415*175*340

4

TMPDSY400-20-3

400

20

398.1

28.9

Φ106×240-M16*25

415*175*340

3

TMPDSY400-25-3

400

25

497.6

36.1

Φ106×285-M16*25

415*175*390

3

TMPDSY400-30-3

400

30

597.1

43.3

Φ116×285-M16*25

415*175*390

3









TMPDSY415-5-3

415

5

92.5

7.0

Φ76×175-M12*16

415*175*340

7

TMPDSY415-7.5-3

415

7.5

138.7

10.4

Φ76×240-M12*16

415*175*340

7

TMPDSY415-10-3

415

10

184.9

13.9

Φ76×240-M12*16

415*175*340

7

TMPDSY415-12-3

415

12

221.9

16.7

Φ86×240-M12*16

415*175*340

5

TMPDSY415-15-3

415

15

277.4

20.9

Φ96×240-M16*25

415*175*340

4

TMPDSY415-20-3

415

20

369.8

27.8

Φ106×240-M16*25

415*175*340

3

TMPDSY415-25-3

415

25

462.3

34.8

Φ116×240-M16*25

415*175*340

3

TMPDSY415-30-3

415

30

554.7

41.7

Φ116×285-M16*25

415*175*390

3









TMPDSY450-5-3

450

5

78.6

6.4

Φ76×175-M12*16

415*175*340

7

TMPDSY450-7.5-3

450

7.5

118.0

9.6

Φ76×175-M12*16

415*175*340

7

TMPDSY450-10-3

450

10

157.3

12.8

Φ76×240-M12*16

415*175*340

7

TMPDSY450-12-3

450

12

188.7

15.4

Φ76×240-M12*16

415*175*340

7

TMPDSY450-15-3

450

15

235.9

19.2

Φ86×240-M12*16

415*175*340

5

TMPDSY450-20-3

450

20

314.5

25.7

Φ96×240-M16*25

415*175*340

4

TMPDSY450-25-3

450

25

393.2

32.1

Φ106×240-M16*25

415*175*340

3

TMPDSY450-30-3

450

30

471.8

38.5

Φ116×240-M16*25

415*175*340

3









TMPDSY480-5-3

480

5

69.1

6.0

Φ76×175-M12*16

415*175*340

7

TMPDSY480-7.5-3

480

7.5

103.7

9.0

Φ76×175-M12*16

415*175*340

7

TMPDSY480-10-3

480

10

138.2

12.0

Φ76×240-M12*16

415*175*340

7

TMPDSY480-12-3

480

12

165.9

14.4

Φ86×240-M12*16

415*175*340

5

TMPDSY480-15-3

480

15

207.3

18.0

Φ86×240-M12*16

415*175*340

5

TMPDSY480-20-3

480

20

276.5

24.1

Φ106×240-M16*25

415*175*340

3

TMPDSY480-25-3

480

25

345.6

30.1

Φ116×240-M16*25

415*175*340

3

TMPDSY480-30-3

480

30

414.7

36.1

Φ116×285-M16*25

415*175*390

3









TMPDSY525-5-3

525

5

57.8

5.5

Φ76×175-M12*16

415*175*340

7

TMPDSY525-7.5-3

525

7.5

86.7

8.2

Φ76×240-M12*16

415*175*340

7

TMPDSY525-10-3

525

10

115.5

11.0

Φ76×240-M12*16

415*175*340

7

TMPDSY525-12-3

525

12

138.7

13.2

Φ86×240-M12*16

415*175*340

5

TMPDSY525-15-3

525

15

173.3

16.5

Φ96×240-M16*25

415*175*340

4

TMPDSY525-20-3

525

20

231.1

22.0

Φ106×240-M16*25

415*175*340

3

TMPDSY525-25-3

525

25

288.9

27.5

Φ116×240-M16*25

415*175*340

3

TMPDSY525-30-3

525

30

346.6

33.0

Φ116×285-M16*25

415*175*390

3









TMPDSY690-5-3

690

5

100.3

4.2

Φ76×175-M12*16

415*175*340

7

TMPDSY690-7.5-3

690

7.5

150.5

6.3

Φ76×240-M12*16

415*175*340

7

TMPDSY690-10-3

690

10

200.7

8.4

Φ76×240-M12*16

415*175*340

7

TMPDSY690-12-3

690

12

240.8

10.0

Φ86×240-M12*16

415*175*340

5

TMPDSY690-15-3

690

15

301.0

12.6

Φ96×240-M16*25

415*175*340

4

TMPDSY690-20-3

690

20

401.4

16.7

Φ106×240-M16*25

415*175*340

3

TMPDSY690-25-3

690

25

501.7

20.9

Φ106×285-M16*25

415*175*390

3

TMPDSY690-30-3

690

30

602.0

25.1

Φ116×285-M16*25

415*175*390

3
