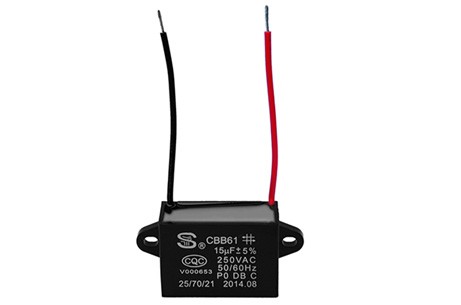

Type CBB61/C61-Ⅱ Metallized film caacitor

listing date： 2017-10-13

CBB61/C61-Ⅱ型交流金属化薄膜电容器 Type CBB61/C61-Ⅱ Metallized film caacitor.pdf

Products / Related products

Type CBB60-I Metallizec film capacitor

2017 - 10 - 13

Execution standard: Meet the requirement of standard《IEC I: 60252-1-2013》《UL810-2008》《GB3667.1-2016》; Product features:low in dissipation,small inherent temperature rise,long life ...

C65V Single round capacitor dimension

2017 - 11 - 22

Standard:《UL810-2008》《IEC 60252-1:2013》《GB/T 3667.1-2016》.Feature: Low dissipation factor,Low temperature rise,Long service life,Excellent self-healing property,Stable capacitance,Inner explosion...

Tyle C61-P2-4Y Round case metallized film capacitor

2017 - 10 - 13

Execution standard: Meet the requirement of standard 《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》; Product features:Long life,stable capacitance,adopt segmented film structure,us...

Product features

Execution standard: Meet the requirement of standard 《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》;
Product features:low in dissipation,small rise,good self-healing performance,stable capacitance and useage safety and dependable;
Product use:They are widely used for draught fan、fan、dehumidifier...etc electrical appliances and equipments srart and running.

Technical Specification

Pated Voltage:110V.AC-450V.AC	Steady state overvoltage:Permit long term of operation under 1.1Un
Capacitance Tolerance:±3%、±5%、±10%	Steady state overcurrent:Permit long term of operation under 1.3ln
Dissipation factor:tgδ≤0.0025(100Hz)	Climate Category:40/70/21 40/85/21 40/105/21
Voltage Proof(Vt-t):2Un/5s	Class of Operation:C（3000h）
Voltage Proof(Vt-c):2000V.AC or 2Un+1000VAC	Safety Class:P0
Product Certificates:VDE、UL、CUL、CQC

规格表

CBB61（C61）—II型电容器规格表 Type CBB61(C61)-II Capacitor specification sheet
		电压 Voltage
		250VAC			300VAC			350VAC			400VAC			450VAC

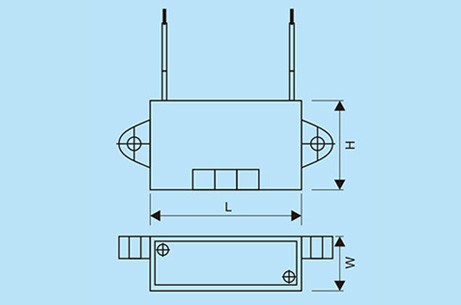

外壳 Case	容量 Capacitance	L	H	W	L	H	W	L	H	W	L	H	W	L	H	W
A/B	0.5	32	22	12	32	22	12	32	22	12	32	22	12	32	22	12
C	0.5	34	22	11.5	34	22	11.5	34	22	11.5	34	22	11.5	34	22	11.5
A/B	0.8	32	22	12	32	22	12	32	22	12	32	22	12	32	22	12
C	0.8	34	22	11.5	34	22	11.5	34	22	11.5	34	22	11.5	34	22	11.5
A/B	1	32	22	12	32	22	12	32	22	12	32	22	12	38	23	12
C	1	34	22	11.5	34	22	11.5	34	22	11.5	34	22	11.5	37	22	12
A/B	1.2	32	22	12	32	22	12	32	22	12	32	22	12	38	23	12
C	1.2	34	22	11.5	34	22	11.5	34	22	11.5	34	22	11.5	37	22	12
A/B	1.5	32	22	12	32	22	12	38	23	12	38	23	12	37	24	13.5
C	1.5	34	22	11.5	34	22	11.5	37	22	12	37	22	12	37	24	13.5
A	1.8	32	22	12	32	22	12	38	23	12	38	23	12	38	27	14.5
B	1.8	32	22.5	12	32	22.5	12	37	24	13.5	37	24	13.5	38	27	14.5
C	1.8	34	22	11.5	33.5	22	11.5	37	24	13.5	37	24	13.5	36	25	16
A/B	2	32	22	12	32	22	12	37	24	13.5	37	24	13.5	38	27	14.5
C	2	34	22	11.5	33.5	22	11.5	37	24	13.5	37	24	13.5	36	25	16
A/B	2.5	32	22	12	38	23	12	38	27	14.5	38	27	14.5	38	28	17
C	2.5	34	22	11.5	37	22	12	36	25	16	36	25	16	38	28	17
A/B	3	32	22	12	37	24	13.5	38	28	17	38	28	17	38	29	18.5
C	3	34	22	11.5	37	24	13.5	38	28	17	38	28	17	38	30	17.5
A	4	38	23	12	38	27	14.5	38	29	18.5	38	29	18.5	47	33	19
B	4	37	22	12	38	27	14.5	38	29	18.5	38	29	18.5	47	31	19
C	4	37	24	13.5	36	25	16	38	30	17.5	38	30	17.5	50	30	19.5
A	5	37	24	13.5	38	28	17	48	28	17	48	28	17	47	33	19
B	5	37	24	13.5	38	28	17	48	28	17	48	28	17	47	33	20
C	5	37	24	13.5	38	28	17	50	30	19.5	50	30	19.5	47	33	20
A	6	38	27	14.5	38	29	18.5	47	33	19	47	33	19	47	32	23
B	6	38	27	14.5	38	29	18.5	47	31	19	47	31	19	47	35	20.5
C	6	36	25	16	38	30	17.5	50	30	19.5	50	30	19.5	47	32	23
A	8	38	28	17	47	33	19	47	32	23	47	32	23	58	34	22
B	8	38	28	17	47	31	19	47	35	20.5	47	35	20.5	58	34	22
C	8	38	28	17	50	30	19.5	47	32	23	47	32	23	58	36	23
A	10	48	28	17	47	32	23	50	37	24	50	37	24	58	38	26
B	10	48	28	17	47	33	20	58	34	22	58	34	22	58	38	26
C	10	41	31	19.5	47	33	20	58	34	22	58	34	22	58	38	26
A	12.5	47	33	19	50	34	23	58	38	26	58	38	26	58	41	29
B	12.5	47	31	19	47	35	23	58	38	26	58	38	26	59	42	30
C	12.5	50	30	19.5	47	35	23	58	38	26	58	38	26	59	42	30
A	15	47	33	19	50	37	24	58	38	26	58	38	26	58	43	32
B	15	47	33	20	58	34	22	58	38	26	58	38	26	58	43	32
C	15	47	32	23	58	34	22	59	42	30	59	42	30	58	43	32
A	18	47	32	23	58	38	26	58	41	19	58	41	19	/	/	/
B	18	47	35	20.5	58	36	23	59	42	30	59	42	30	/	/	/
C	18	47	32	23	58	38	26	59	42	30	59	42	30	/	/	/
A	20	58	34	22	58	38	26	58	43	32	58	43	32	/	/	/
B	20	47	35	23	58	38	26	58	43	32	58	43	32	/	/	/
A/B/C	22.5	58	34	22	59	42	30	/	/	/	/	/	/	/	/	/
A/B/C	25	58	36	23	59	42	30	/	/	/	/	/	/	/	/	/
A/B/C	30	58	38	26	58	43	32	/	/	/	/	/	/	/	/	/
A/B/C	35	58	41	29	/	/	/	/	/	/	/	/	/	/	/	/
A/B/C	40	59	42	30	/	/	/	/	/	/	/	/	/	/	/	/
◆特殊要求可根据用户要求协商制作。Special requirement can be fulfilled at the request of customers.
