Product name:

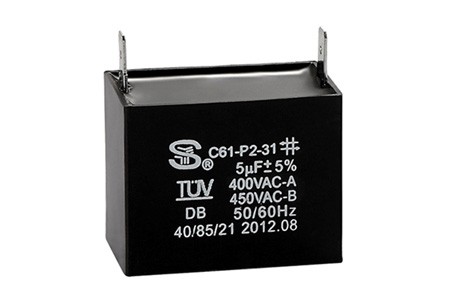

Tyle C61-P2-3Y Square case metallized film capacitor

listing date: 2017-10-13
Products / Related products
2017 - 12 - 04
◆Execution standard:《IEC:60252-1—2013》《GB3667.1—2016》;◆Product features: Small size, long service life, stable capacitance, internal use of safety mesh membrane explosion-proof structure, the use of s...
2017 - 10 - 13
Execution standard: Meet the requirement of standard《EC I: 60252-1-60252》《UL810-2008》《GB3667.1-2005》; Product features:low in dissipation,small inherent temperature rise,long life ...
2017 - 10 - 13
Execution standard: Meet the requirement of standard 《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》; Product features:Small size,good self-healing performance,useage safety an...
Product features

Execution standard: Meet the requirement of standard 《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》;
Product features:Long life,stable capacitance,adopt segmented film structure,useage safety and dependable;
Product use:They are widely used for dishwasher、refrigerator、draught fan、fan、air purifier、mobile air conditioner...etc long life and high safety requirement of electrical appliances and equipments srart and running.



Technical Specification

Pated Voltage:110V.AC-450V.AC

Steady state overvoltage:Permit long term of operation under 1.1Un

Capacitance Tolerance:±3%、±5%、±10%

Steady state overcurrent:Permit long term of operation under 1.3ln

Dissipation factor:tgδ≤0.0025(100Hz)

Climate Category:40/70/21 40/85/21 40/105/21

Voltage Proof(Vt-t):2Un/5s

Class of Operation:A(30000h) B(10000h)

Voltage Proof(Vt-c):2000V.AC or 2Un+1000VAC

Safety Class:P2

Product Certificates:TUV、UL、CUL、CQC


Tyle C61-P2-3Y Square case metallized film capacitor


规格表

C61-P2-3Y-方形交流金属化薄膜电容器

C61-P2-3Y-方型电容器规格表 Type C61-P2-3Y Capacitor specification sheet



400VAC-A/450VAC-B

外壳 Case

容量 Capacitance (uF)

L

H

W

A/B/C

0.5

37

22

12

A

0.8

38

23

12

B/C

0.8

37

24

13.5

A/B

1.2

38

27

14.5

C

1.2

36

25

16

A/B/C

1.5

38

28

17

A/B

1.8

38

29

18.5

C

1.8

38

30

17.5

A/B

2

48

28

17

C

2

41

31

19.5

A/B

2.2

48

28

17

C

2.2

41

31

19.5

A

2.75

47

33

19

B

2.75

47

31

19

C

2.75

50

30

19.5

A

3

47

33

19

B

3

47

31

19

C

3

50

30

19.5

A

3.5

47

32

23

B/C

3.5

47

33

20

A/C

4

47

32

23

B

4

47

35

23

A/C

4.5

50

37

24

B

4.5

47

35

23

A/C

5

50

37

24

B

5

47

37

37

A/B/C

5.5

47

37

27

A/B/C

6

47

37

27

A/B/C

7.5

50

43

30

A/B/C

8

50

43

30

A/B/C

10

60

42

35

A/B/C

12.5

70

52

38

A/B/C

15

70

52

38

A/B/C

17.5

70

50

62

A/B/C

20

70

50

62

A/B/C

22.5

70

50

62

A/B/C

25

70

50

62

◆特殊要求可根据用户要求协商制作。Special requirement can be fulfilled at the request of customers.
