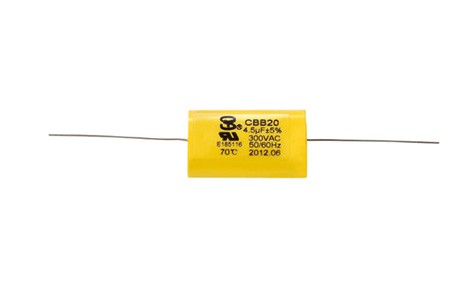

![Tyle CBB20 Capacitor]( "Tyle CBB20 Capacitor")
Execution standard: Meet the requirement of standard 《UL810-2008》;
Product features:Non-inductive construction,good self-healing performance,high property of moisture resistance,high capacitance value available and compact size;
Product use:coupling,decoupling by passing and timing circuit,automatic control system,communication equipment,charging/discharging lighting、noise suppression and frequency modulation.
Technical Specification
Pated Voltage:110V.AC-600V.AC | Steady state overvoltage:Permit long term of operation under 1.1Un |
Capacitance Tolerance:±3%、±5%、±10% | Steady state overcurrent:Permit long term of operation under 1.3ln |
Dissipation factor:tgδ≤0.0025(100Hz) | Climate Category:40/70/21 40/85/21 40/105/21 |
Voltage Proof(Vt-t):1.5Un/5s | Safety Class:P0 |
Voltage Proof(Vt-c):2000V.AC or 2Un+1000VAC |
|
Product Certificates:UL、CUL |
|
