Standard:《UL810-2008》《IEC 60252-1:2013》《GB/T 3667.1-2016》.
Feature: Low dissipation factor,Low temperature rise,Long service life,Excellent self-healing property,Stable capacitance,Inner explosion-proof divice.
Application: Mainly as motor run capacitor for Airconditioner,washing machine, dishwasher, fan ect.
Technical parameter:
Rate voltage: 110VAC—600VAC
Overload voltage: Be allowable to operate under 1.1 Un
Tolerance: ±5%、+10/－5%、±10%
Overload current: Be allowable to operate under 1.3 In
Dissipation factor: tgδ≤0.0025(100Hz)
Operation Temperature: 40/70/21 40/85/21
Class of operation: B(10000h)
Safety level: 10000AFC,S2.
Withstanding voltage between terminal to case: 2000VAC or 2.4Un+1200VAC
Life Expectation: 10,000hours.
Approval: UL、CUL、TUV

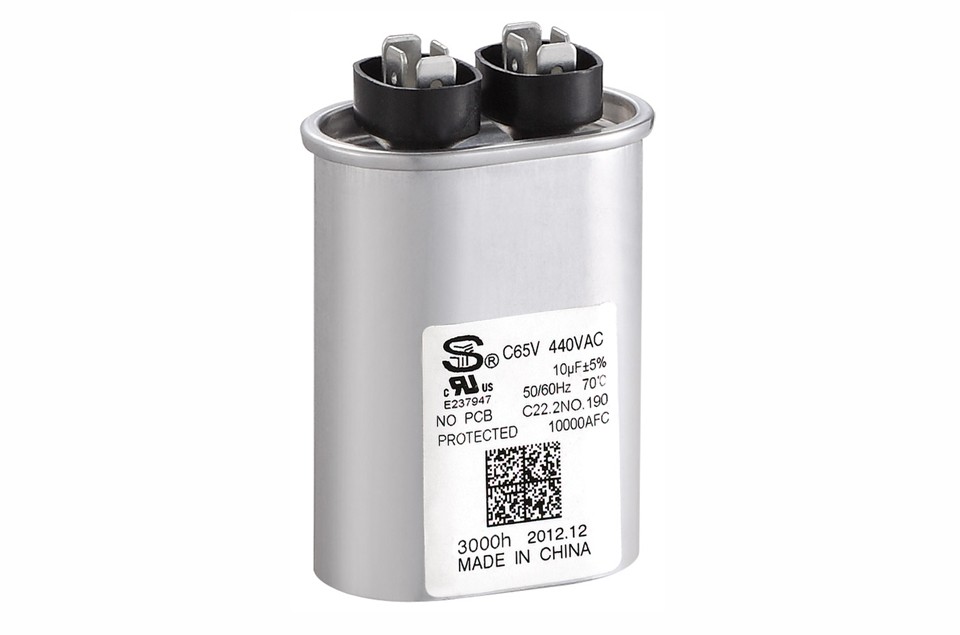

![C65V Single round capacitor dimension]( "C65V Single round capacitor dimension")
