Product name:

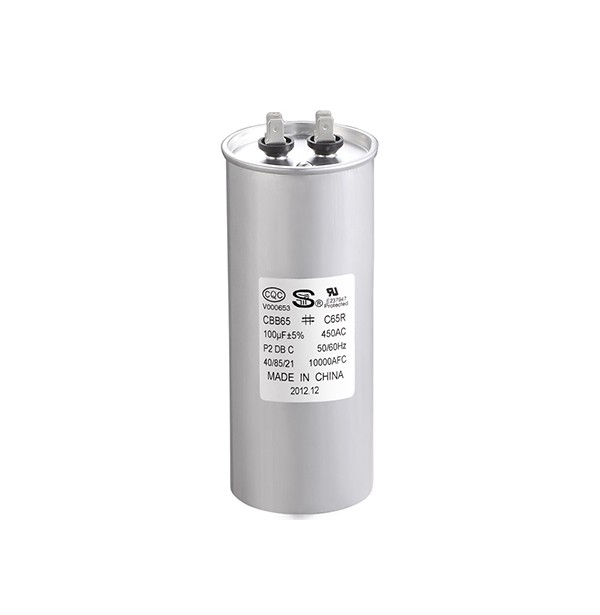

CBB65 Filter capacitor

listing date: 2017-11-21
Products / Related products
2017 - 11 - 22
Standard:《UL810-2008》《IEC 60252-1:2013》《GB/T 3667.1-2016》.Feature: Low dissipation factor,Low temperature rise,Long service life,Excellent self-healing property,Stable capacitance,Inner expl...
2017 - 10 - 13
Execution standard: Meet the requirement of standard《IEC I: 60252-1-2013》《UL810-2008》《GB3667.1-2016》; Product features:low in dissipation,small inherent temperature rise,long life ...
2017 - 11 - 22
Standard:《UL810-2008》《IEC 60252-1:2013》《GB/T 3667.1-2016》.Feature: Low dissipation factor,Low temperature rise,Long service life,Excellent self-healing property,Stable capacitance,Inner explosion...
Product features

Standard: 《UL810-2008》《IEC 61071-1:1991》《IEC 61071-2:1994》《GB/T 17702.1-1999》《GB/T 17702.2-1999》《GB/T 3667.1-2005》.

Feature: High safety level, low temperature rise, high frequency current carrying, long life expectation Excellent self healing property, stable capacitance,Inner explosion-proof divice.

Application: Mainly for resonance filter circuit for parameters stabilized voltage supply and the output filter circuit for UPS.



Technical parameter:

Rate voltage:250VAC—500VAC

Capacitance tolerance: ±5%、+10/-5%、±10%

Dissipation factor: tgδ≤0.0025(100Hz)

Climate classification: 40/70/21 40/85/21

Safety level:10000AFC, P2

Approval: UL, CUL, VDE, TUV, CQC

Withstanding voltage between terminal to terminal: 2Un/5s

Withstanding Voltage between terminal to case: 2000VAC or 2.4Un+1200VAC

Overload voltage: Be allowable to operate under 1.1 Un

Overload current: Be allowable to operate under 1.3 In

Discharging property: The remaining voltage is less than 50V after being switched off from √2 Un voltage 60s.


Product parameters
