Product name:

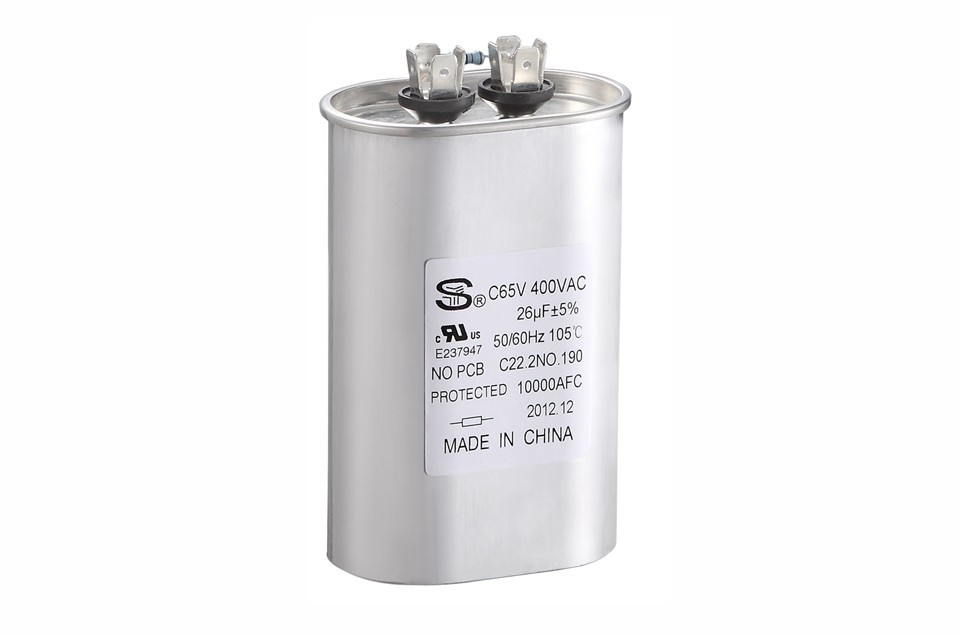

C65V Lighting Capacitor

listing date: 2017-11-22
Products / Related products
2017 - 10 - 13
Execution standard: Meet the requirement of standard《IEC I: 60252-1-2013》《UL810-2008》《GB3667.1-2016》; Product features:low in dissipation,small inherent temperature rise,long life ...
2017 - 11 - 22
Standard:《UL810-2008》《IEC 60252-1:2013》《GB/T 3667.1-2016》.Feature: Low dissipation factor,Low temperature rise,Long service life,Excellent self-healing property,Stable capacitance,Inner explosion...
2017 - 10 - 13
Execution standard: Meet the requirement of standard 《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》; Product features:Long life,stable capacitance,adopt segmented film structure,us...
Product features

Standard: 《UL810-2008》《IEC 61048:2006》《IEC 61049:1991》《GB/T 18489-2008》《GB/T 18504-2001》.
Feature: High safety level, low temperature rise, high frequency current carrying, long life expectation Excellent self healing property, stable capacitance,Inner explosion-proof divice. Usually the shape of capacitor is round or oval.
Application: Mainly to be in series or in parellel with fluorescent lamps and metal halide lamps.


Technical parameter:
Rate voltage:250VAC—580VAC .

Capacitance tolerance: ±5%、+10/-5%、±10%.
Dissipation factor: tgδ≤0.0025(100Hz).

Climate classification: 40/70/21, 40/85/21, 40/105/21.
Safety level:10000AFC, P2.

Approval: UL, CUL, VDE, TUV, CQC.
Withstanding voltage between terminal to terminal: 2Un/5s.
Withstanding Voltage between terminal to case: 2000VAC or 2.4Un+1200VAC.
Overload voltage: Be allowable to operate under 1.1 Un.
Overload current: Be allowable to operate under 1.3 In.
Discharging property: The remaining voltage is less than 50V after being switched off from √2 Un voltage 60s.
Life Expectation: 30000h.


Product parameters
