Product name:

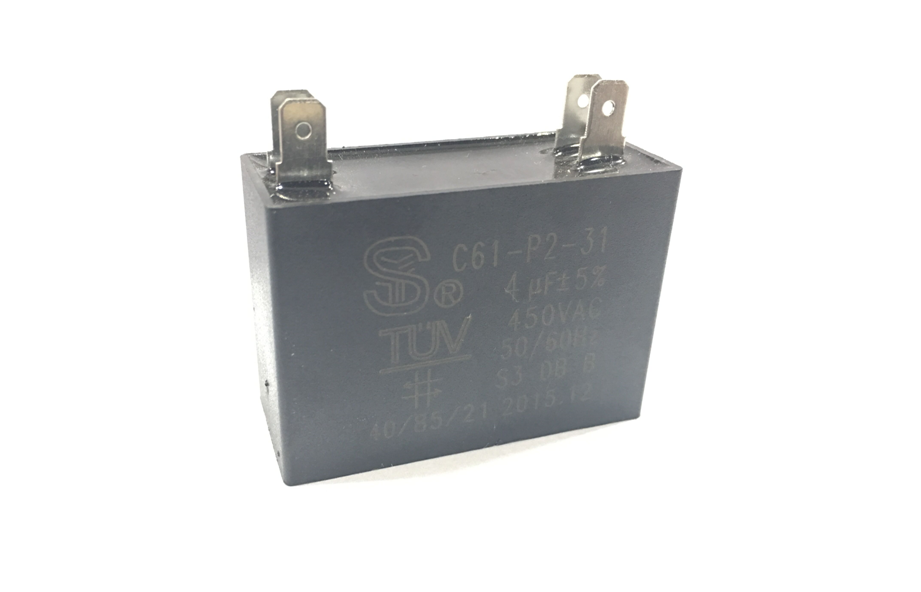

Tyle S3 Square case metallized film capacitor

listing date: 2017-12-04
Products / Related products
2017 - 12 - 04
◆Execution standard:《IEC:60252-1—2013》《GB3667.1—2016》;◆Product features: Small size, long service life, stable capacitance, internal use of safety mesh membrane explosion-proof structure, the use of s...
2017 - 10 - 13
Execution standard: Meet the requirement of standard《EC I: 60252-1-60252》《UL810-2008》《GB3667.1-2005》; Product features:low in dissipation,small inherent temperature rise,long life ...
2017 - 10 - 13
Execution standard: Meet the requirement of standard 《I EC:60252-1-2011》《UL810-2008》《GB3667.1-2005》; Product features:Small size,good self-healing performance,useage safety an...
Product features

Execution standard:《IEC:60252-1—2013》《GB3667.1—2016》;

Product features: Small size, long service life, stable capacitance, internal use of safety mesh membrane explosion-proof structure, the use of safe and reliable;

Product use:Widely used in dishwashers, refrigerators, fans, fans, air purifiers, mobile air conditioners and other electrical appliances and equipment with high safety performance requirements Motor starting operation


Technical Specification

Pated Voltage:250V.AC-450V.AC

Steady state overvoltage:Permit long term of operation under 1.1Un

Capacitance Tolerance:0.5---50uF±3%、±5%、±10%

Steady state overcurrent:Permit long term of operation under 1.3ln

Dissipation factor:tgδ≤0.0025(100Hz)

Climate Category:40/70/21  40/85/21

Voltage Proof(Vt-t):2Un/5s

Class of Operation:A 30000h   B 10000h  C 3000h

Voltage Proof(Vt-c):2000V.AC or 2Un+1000VAC

Safety Class:S3

Product Certificates:TUV、UL、CUL、CQC



Product parameters
